Diffuse beam angle
Directed beam angle (approx. 20-30°)
If you cannot find a suitable length in our extensive standard range, we will be delighted to offer you an LED bar light according to your requirements.
As we are the manufacturer of the bar lights ourselves, we can offer customized bar lights up to 1.8 m long in one piece with only a short delivery time and at attractive prices. For even longer applications, we have the option of combining several rimless bar lights.
This module has a very narrow design. This makes it easier to integrate into the overall system and the camera can look past the luminaire at a very steep angle.
With a choice between a clear and a white opaque front, you can decide whether the luminaire should emit diffuse or directed light.
The bar lights have an optocoupler switching input that responds to every rising edge from 5 V TTL to 24 V PLC. The operating indicators on the back show the operating status of the light. No additional external controllers are required, everything is built into the light.
The luminaire can be equipped for a wide range of applications in industrial image processing in various shades of white, but also in monochrome light colors from approx. 490 to 625 nm.
This assembly has a very slim frame to one edge. This makes it easier to integrate into the overall system and the camera can look past the luminaire at a very steep angle.
With the choice between a clear and a white opaque front, you can decide whether the light should emit diffuse or directional light.
The special feature of this module is that these bar lights can be used for both continuous operation and flash mode. This means that they can be set up in continuous mode and later operated in flash mode. The switching inputs react from 5 V TTL up to 24 V PLC to every rising edge.
No additional external controllers are required, everything is built into the luminaire.
The heat emitted by the bar light is dissipated evenly across the entire housing and the heat sink.
The light can be fitted with the light colors white and red for a wide range of applications in industrial image processing. Other colors on request.
Genau hier liegt unsere Stärke. Durch dem planistar die Leuchten im eigenen Hause fertigt, können wir kundenspezifische Hintergrundbeleuchtungen in kurzen Lieferzeiten herstellen.
So müssen Sie sich nicht nach unserem Standardprogramm richten. Wir richtigen uns genau nach Ihren Anforderungen und den Gegebenheiten vor Ort.
So sparen Sie Kosten in derUnsere Fertigungsabläufe sind so geplant, dass eine kundenspezifische Leuchte nahezu den gleichen Durchlauf hat wie eine Standardbeleuchtung. Der einzige Unterschied ist, dass die Sonderleuchte genau Dokumentiert wird. So sind wir auch noch nach Jahren in der Lage, Ersatz zu liefern.
Profitieren Sie von der Zusammenarbeit mit planistar.
Leuchten direkt vom Hersteller
When revising the product series, we always take sustainability into account, as many small details add up to a big picture.
This starts with saving resources and energy, the right choice of materials we use, right through to packaging and disposal.

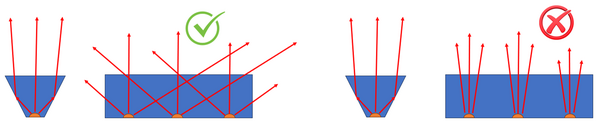

High-quality, high-gloss reflectors are installed in our bar lights, which optimally reflect the LED light in the direction of illumination and thus achieve a high light output.
The special thing about this design is that we only focus the light in one direction, but the light is emitted at 120° across the light width. This ensures uniform illumination over the entire length.
If, as with other manufacturers, the light is focused in both directions, uneven illumination may occur.
With our mounting brackets, our bar lights can be easily installed in your system.
The exact beam direction can be optimally adjusted on site using a slotted hole.
In addition to our standard brackets, we can also produce customized fasteners for you in our own sheet metal processing facility.
In our lamps, the LED controllers are always built-in to the lamp. This prevents operating errors and accidental damage.
In order to achieve optimum interaction between the LED and the control unit, the electronics are also developed in-house and manufactured exclusively for us by a regional company.
The installation of the controller in the light offers a decisive advantage, especially for applications with flash operation. The very high and short flash current is generated and stored in the luminaire. The currents in the supply line can thus be reduced accordingly. This principle helps to reduce the risk of EMC interference.
The internal microcontroller monitors the pulse-pause ratio and only allows a new pulse after 1:5. This prevents the LEDs from overheating and being damaged by the flash mode.
The days when LEDs did not generate any heat are long gone. Due to increasingly powerful technology, it is important to design optimum thermal management for the entire fitting.
Because the only death for an LED is heat death. For this reason, the heat at the LEDs determines the service life of the entire luminaire.
Our mostly 2 mm aluminum housings serve as a large cooling surface which, depending on the application, can be supported by additional heat sinks.
Our team will be at your disposal for any questions you may have. We will process your request as soon as possible.
