LED machine lights for industry -
Our assemblies at a glance

Sled-4-ALLED linear luminaire

High-quality machine light in a robust housing for many industrial applications
White light color in neutral white for pleasant working conditions
Variant with optocoupler switching input
Can be fitted in white or other light colors

Find out more...

Sled-4-ALSLED linear luminaire with signal function

LED Maschinenbeleuchtung mit Signalwirkung für den Maschinenbau

"Two in one" - LED light and signal light in one
Signals directly at the action, where they are seen
Variant with optocoupler switching inputs
Red and orange as signal colors

Find out more...

LED machine lighting

Signalleuchte mit Amber und Rot integriert in einer Maschinenbeleuchtung

incl. signal function

incl. mounting bracket

Maschinenbeleuchtung inkl. Haltewinkel für einfache Montage

Application example

Sled-4-AL,
LED machine lighting

hochwertige und helle LED Langfeldbeleuchtung für die Industrie

This high-quality machine light with a robust powder-coated aluminum housing is designed for "normal" to harsh industrial environments.

It can be connected directly to a 24 V power supply. The internal current control emits a constant light and results in a long service life for the linear luminaire.

Thanks to the DC control, the machine lighting can also be used for industrial image processing applications.

The variant with optocoupler switching input is usually used for image processing tasks.
The LED lighting can be fitted in any monochrome color (white, green, amber, red, blue) up to RGB or RGBW.

This series is supplied with a bracket set, making it easy to install and adjust.

In addition to our standard designs, we can customize machine lights according to customer specifications in terms of dimensions, equipment and function.

Catalog page 42

Sled-4-ALS,
LED machine light with signal function

Langfeldbeleuchtung in LED Technik mit integrierter Signalfunktion

A slightly wider version of the Sled-4-AL machine light serves as the basis.

In addition to the basic color, 2 signal colors (red and orange as standard) are fitted. In addition to the basic color, these can be freely selected on request.

This gives you a "two-in-one" linear luminaire and signal luminaire in one.
The aim is to set signals where they can be seen.

Here, planistar also has a version without and one with a switching input in its range. To further increase the signal effect of the version with switching input, the basic light is switched off at the same time as the signal color is switched on.

Translated with www.DeepL.com/Translator (free version)

In addition to our standard designs, we can customize signal lights to customer specifications in terms of dimensions, equipment and function.

Catalog page 43

Customer specifications

Maschinenbeleuchtung mit LED Technik für den Maschinen- und Anlagenbau — M8 industrial connector

Anwendungsbeispiel einer Maschinenbeleuchtung mit integrierter Signalleuchte — robust

hochwertige und lichtstarke Anlagenbeleuchtung mit Signalwirkung — powerful

Genau hier liegt unsere Stärke. Durch dem planistar die Leuchten im eigenen Hause fertigt, können wir kundenspezifische Hintergrundbeleuchtungen in kurzen Lieferzeiten herstellen.

So müssen Sie sich nicht nach unserem Standardprogramm richten. Wir richtigen uns genau nach Ihren Anforderungen und den Gegebenheiten vor Ort.

So sparen Sie Kosten in der

Konzeption der Anlage,
Konstruktion und in der
Auswertung in der industriellen Bildverarbeitung.

Unsere Fertigungsabläufe sind so geplant, dass eine kundenspezifische Leuchte nahezu den gleichen Durchlauf hat wie eine Standardbeleuchtung. Der einzige Unterschied ist, dass die Sonderleuchte genau Dokumentiert wird. So sind wir auch noch nach Jahren in der Lage, Ersatz zu liefern.

Profitieren Sie von der Zusammenarbeit mit planistar.
Leuchten direkt vom Hersteller

Sustainability atplanistar

When revising the product series, we always take sustainability into account, as many small details add up to a big picture.

This starts with saving resources and energy, the right choice of materials we use, right through to packaging and disposal.

Raw materials are carefully selected
Increase in luminous efficacy by approx. 20 % compared to the predecessor with the same properties
Reduction of raw materials by approx. 30 % compared to the predecessor with the same properties
Optimization of electronics and thermal management to extend service life
Manufacture of the luminaire directly at planistar in Germany
All materials can be recycled at the end of their service life
Packaging is 100 % recyclable

You can find more information on sustainability here

Many customization options

As we are the manufacturer ourselves and have the entire production in-house, we can adapt our machine lighting entirely to your requirements. From individual lights to series production.

Mechanische Anpassungen

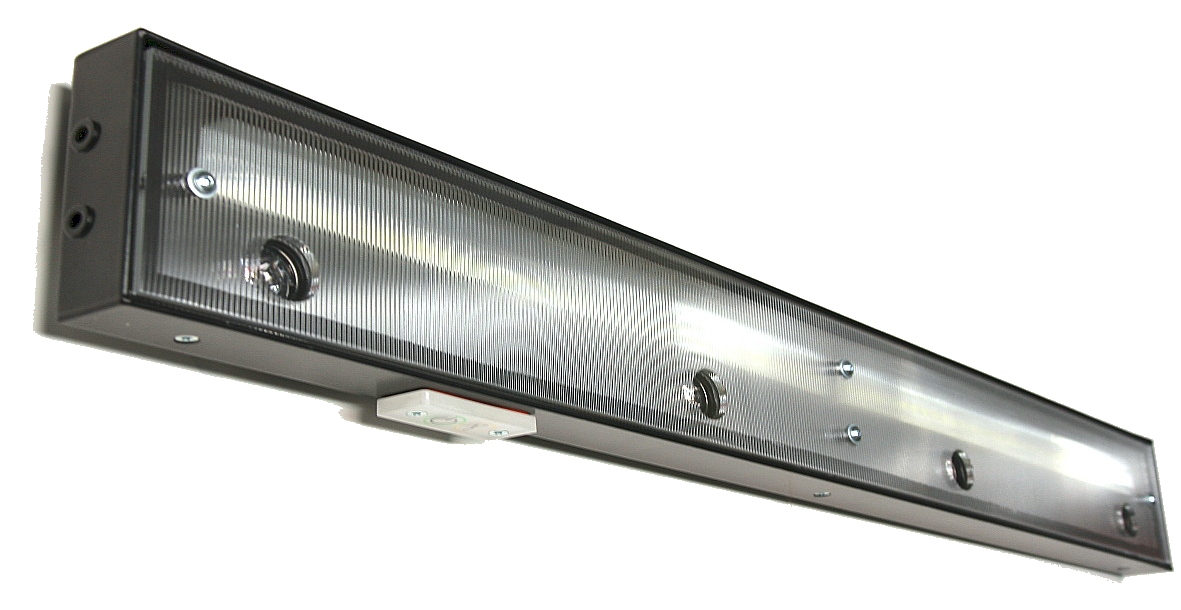

LED Maschinenleuchte mit integrierten Signalspots für die Industrie

The dimensions of our basic luminaires can be modified according to customer requirements. If no suitable basic model is available, an individual luminaire can be designed according to your specifications.
Further options for mechanical adjustments to the LED machine lights are

the IP protection class
the color of the housing
and mounting options.

Lichttechnische Anpassungen

kundenspezifischer Maschinenstrahler mit 60° Optiken

The brightness and beam characteristics of the LED luminaire can also be configured to suit your lighting requirements.
Typical adaptations to the LED linear luminaires are:

Beam angle (light emission angle)
Specification of a defined brightness (min. or max.)
Selecting the right light color
Specification of the area to be illuminated

We realize your LED machine light with a lot of knowledge and experience.

Elektrische Anpassungen

Leuchten von planistar werden nach Kundenwunsch angepasst, auch im Anschluß

Not only the light color, but also the light quality of the light source is important. The Ra value indicates the composition of the LED's light spectrum. Generally, only the Ra value is used. For LEDs, however, the Ri value (extended Ra value) should be specified. This also includes the strong primary colors. planistar always specifies both values.

We have put together various examples of customized solutions that we have already successfully implemented for our customers:

Examples of comized solutions

Why LED machine lighting by planistar?

For responsible work with machines and tools, a durable and high-quality luminaire at the operator station is very important, especially in the industrial sector. Thanks to their robust and slim design, our linear luminaires provide optimum lighting even in confined spaces and can be adapted to a wide variety of lighting tasks.

This makes our LED machine lights suitable as a lighting solution for workstations and machine tools as well as for applications on control panels and control cabinets.

Illumination of system components
Illumination of materials
Combination LED light / LED signal light

Thanks to the direct current control, the machine light can also be used for tasks in industrial image processing. This means that no flickering due to a PWM frequency can be detected in the image.

The special feature of our LED lights is that we can integrate a signal light into the base unit. This allows signals to be set where they can be seen. The improved signal effect significantly reduces the health risks to your employees.

The right light is a prerequisite for safe, precise and economical work.

With the LED machine lights from planistar, you get a robust and durable light. The smooth design prevents dust and dirt deposits.
